The Complete Guide to Using the Dogtra 1900X Remote Training Collar

Owning a dog is one of life’s greatest joys, but it also comes with responsibilities – one of the biggest being training. While dog training isn’t impossible, it does require patience, consistency, and the right tools. That’s why training collars have evolved over the years, introducing innovations that improve both safety and effectiveness.

One such innovation is the Dogtra 1900X remote training collar. With advanced safety features and enhanced functionality, it’s designed to make training more efficient. But what sets it apart from other options? Let’s take a closer look!

Getting Started with the Dogtra 1900X

What is the Dogtra 1900X? The Dogtra 1900X is an e collar for dogs. E collars, also called remote trainers, dog shock collars, or remote training collars, help correct your dog’s undesirable behavior and reinforce already learned commands. Because they work well even at a distance, e collars make valuable communication tools and foster better relationships between pets and their owners.

Get your Dogtra 1900X remote training collar and start dog training today!

If you’ve just gotten the Dogtra 1900X or are looking for more information before purchasing one for your beloved furry companion, here’s everything you need to know.

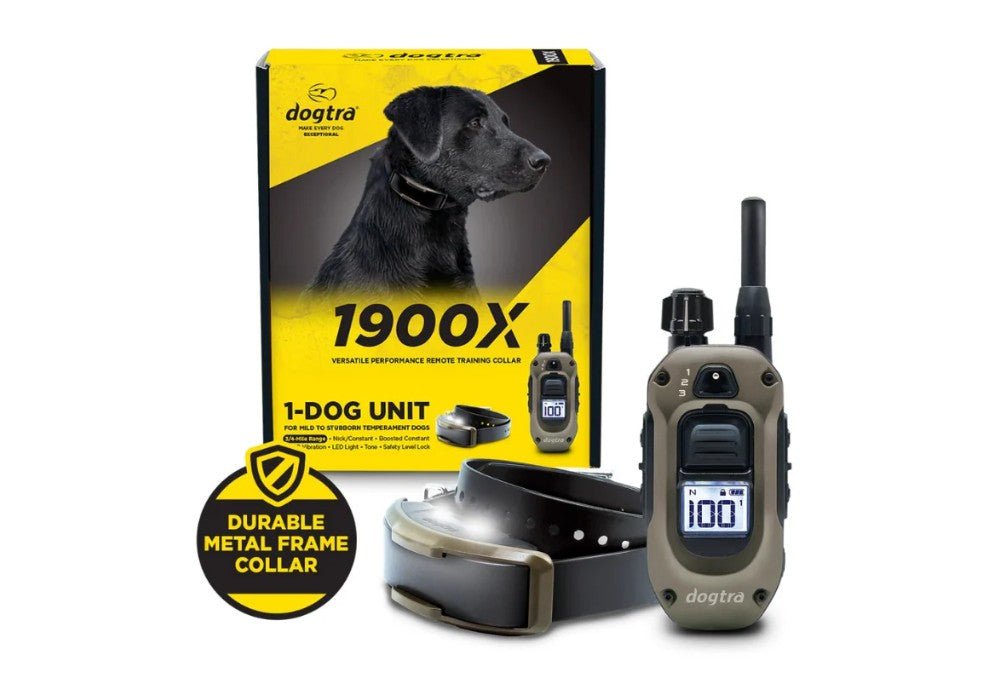

What comes in the box:

• Waterproof Remote Transmitter

• Waterproof E-Collar Receiver

• 1" Wide x 28" Long Biothane E-Collar Strap

• 5V 2.5A Charger with USB-C Charging Cable

• Removable 5/8" Male Contact Points

• Test Light

• Belt Clip

• Lanyard

• Owner’s Manual

Dogtra 1900X Remote Transmitter:

The 1900X remote transmitter boasts a sleek brown finish and a tough, ergonomic design. Its double-layered casing enhances drop resistance, making it ideal for demanding training conditions.

Dogtra 1900X Receiver Collar:

The 1900X receiver collar is rugged, waterproof, and built to withstand tough use. It features a metal protective case that shields it from drops, scratches, and damage.

The Dogtra 1900X remote training collar comes with the following features:

• 3/4-Mile Range

• 100 High Output Levels

• Nick, Continuous & XPP Vibration

• Audible Tone

• Boost & Level Lock

• One Handed Control

• Durable Double Remote Casing

• LED E-Collar Light

• Removable Contact Points

• Fully Waterproof

• 3-Dog Expandable

• For Dogs 35 Pounds and Up

For multi-dog households, the 1900X is also available in a two-dog system (1900X-2 Dog).

The Dogtra 1900X – The Next-Generation E-Collar for Dogs

The Dogtra 1900X is an upgraded version of the renowned 1900S remote dog training collar. With improved features and a durable build, it stands out as one of the most versatile training tools available today.

With a range of 3/4 mile, it is ideal for off-leash training and outdoor activities. The collar offers 100 adjustable stimulation levels for precise corrections, as well as XPP vibration and an audible tone for gentler cues. The BOOST function provides an instant response when needed, and the central command button allows for quick and easy corrections.

Built for durability, the Dogtra 1900X can handle the toughest conditions. Its bright LED collar light enhances visibility in low-light situations, adding an extra layer of safety during evening walks or training sessions. The fully waterproof design ensures reliable performance in any weather. Plus, the system allows you to control up to three dogs with a single remote.

With top-tier performance and effortless control, the Dogtra 1900X is the ultimate training tool for those who demand the best.

Frequently Asked Questions

What is an e collar?

• An e collar is a dog training tool. It is also known as a remote trainer, dog training collar, or shock collar for dogs. It allows you to communicate remotely with your dog. When used correctly, it helps reinforce commands and correct unwanted behaviors. It enables precise timing and consistency in training, making it a highly effective tool.

Will an e collar hurt my dog?

• A remote trainer works by sending a signal from the transmitter to the collar on the dog’s neck, triggering stimulation, which may include static shock. The stimulation is designed to distract the dog from unwanted behavior or mark desired actions. The stimulation may be unpleasant but generally harmless.

For those who prefer an alternative to static stimulation, the Dogtra 1900X features XPP vibration and an audible tone.

Are e-collars effective?

• E-collars can be valuable training tools when used correctly. If you are unsure how to use one, consult a professional trainer for guidance.

When can I use an e-collar on my dog?

• PetsTEK does not recommend using an e collar on dogs younger than 6 months. A dog training collar should only supplement training once your dog has learned basic commands.

Are Dogtra collars worth it?

• Yes. Dogtra e-collars are safe and effective training devices, trusted by professional trainers and pet owners alike.

How does the Dogtra 1900X e collar work?

• The Dogtra 1900X e-collar operates by sending signals from a handheld transmitter to a receiver collar worn by your dog. The receiver has two contact points that deliver static stimulation, vibration, or tone. The intensity is adjustable to fit your dog's needs, and the boost function provides extra power for demanding situations.

What’s the difference between the Dogtra 1900X and 1900S?

• The Dogtra 1900X introduces a redesigned remote with a dual-layered front plate, a central command button, tone, BOOST, and XPP vibration. It also features an integrated LED light for better visibility and supports training up to three dogs at once.

In contrast, the 1900S offers a more streamlined design with HPP Vibration, Nick, and Continuous buttons. While it lacks the additional features of the 1900X, it still provides reliable and effective training capabilities.

Does the Dogtra 1900X have any safety features?

• Yes, the Dogtra 1900X is designed with safety in mind. It features an automatic shut-off after 12 seconds of continuous stimulation to prevent overstimulation. Plus, the safety level lock ensures your settings stay in place, avoiding accidental adjustments.

Operating the Dogtra 1900X Remote Dog Training Collar

Setting Up Your Dogtra 1900X System

How to charge your Dogtra 1900X  e-collar system?

• To charge your Dogtra 1900X e-collar, follow these simple steps:

1. 1. Plug the USB-C cable into both the transmitter and receiver.

   2. Plug the other end of the USB-C cable into a wall outlet.

   3. Watch the indicator lights. They should turn red during charging and green when fully charged. The charging process typically takes around 2 hours.

How do I turn the Dogtra 1900X remote transmitter on and off?

• To turn the transmitter on, press and hold the power button on the bottom right of the transmitter until the screen lights up. To turn the transmitter off, press the same button for 2 seconds.

How do I turn the Dogtra 1900X e-collar receiver on and off?

• To turn the e-collar receiver on or off, press and hold the power button, located between the contact points, for 2 seconds. A green light means it's on; a red light means it's off.

How to Use the Transmitter

How to program the Main Command button?

• To program the main button for Nick or Constant stimulation, here are the steps:

1. 1. Set the stimulation level to “0”.

   2. Simultaneously press and hold both the main front button and the side power button for 5 seconds.

   3. The selected mode (Nick or Constant) will be displayed on the screen.

Note: The factory default setting is Nick mode.

How to set the Boosted Constant?

• To use the Boosted Constant feature, follow these steps:

1. 1. Turn the dial to set the stimulation level to zero.

   2. Press and hold the Boosted Constant button for 5 seconds until the LED light blinks.

   3. Turn the dial to choose the desired boost level. This will be added to the base level when you use the Boosted Constant button.

   4. Tap the Boosted Constant button to save the setting.

Note: To use Constant stimulation without Boost, set the Boost level to 0. Your Boost setting will be saved even if you turn off the device. To change the Boost setting, follow the steps above.

What do Nick and Constant Stimulation mean?

• Nick emits a single pulse of static stimulation when the Nick button is pressed. On the other hand, Constant gives continuous, static stimulation as long as the button is pressed, for up to 12 seconds.

What is the Dogtra 1900X XPP Vibration?

• The XPP (Extreme Performance Pager) vibration provides a 12-second vibration when the button is held.

How to use the Dogtra 1900X Audible Tone?

• To use the audible tone on your Dogtra 1900X, press and hold the tone button for up to 12 seconds.

How to use the LED Locate Light?

• The 1000-lux LED Locate Light on the Dogtra 1900X receiver helps you easily spot your dog in low-light conditions. Here's how to use it:

1. 1. Enable Continuous Blinking: Tap the Locate Light button once on the transmitter. The light will blink every 4 seconds.

   2. Disable Continuous Blinking: Tap the Locate Light button again to turn off the blinking.

   3. Manual Activation: Press and hold the Locate Light button for steady blinking. The light will stay on for up to 12 seconds.

How to use the Safety Level Lock?

• To prevent accidental changes to the stimulation level, you can lock the controls. Press and hold the top of the dial for 2 seconds to activate the lock. A lock icon will appear on the screen. To unlock, simply press and hold the top of the dial again for 2 seconds.

How to add a collar receiver to your 1900X system?

• To add another receiver to your system, follow these steps:

1. 1. Power On and Select Dog: Turn on the transmitter and ensure the stimulation level is set to 0. Select the desired dog number (1, 2, or 3).

   2. Prepare the Receiver: Turn off the new receiver and press and hold its power button for 5 seconds until the LED blinks.

   3. Pair the Devices: On the transmitter, simultaneously press the front button and the side Boost button until the screen displays "CD****".

   4. Test the Pairing: Press the Pager vibration button. If the new receiver vibrates, the pairing is successful. If not, repeat the pairing process.

How to install the X-Shield on your transmitter?

• Here's how to install your X-Shield:

1. 1. Use the included tool to loosen the four screws on the front case of your transmitter.

   2. Carefully remove the front case.

   3. Place the X-Shield on top of the transmitter, aligning the screw holes.

   4. Tighten the four screws to secure the X-Shield in place.

Note: Additional X-Shields are sold separately.

How to pair the HANDSFREE SQUARE with your Dogtra 1900X system?

• The HANDSFREE SQUARE allows you to control specific functions of your Dogtra 1900X system remotely, making training hands-free. Follow these simple steps to pair the HANDSFREE SQUARE with your transmitter:

Pairing for Nick or Constant Stimulation

1. 1. Switch on the transmitter and set the stimulation level to “0.”

   2. Press and hold the POWER and CENTER (N/C) buttons simultaneously for 5 seconds.

   3. The screen will display the selected function.

   4. After selecting the function, power off the transmitter.

   5. Press and hold the POWER and CENTER (N/C) buttons again until the LED blinks rapidly.

   6. Hold the HANDSFREE SQUARE button until it codes the selected function.

Pairing for Other Functions (e.g., Boost, Pager, Tone, Light)

1. 1. Ensure the transmitter is powered down.

   2. Press and hold the ON/OFF button along with your desired function button (e.g., Boosted Constant, Pager, Tone, or Light) until the LED blinks rapidly.

   3. Press and hold the HANDSFREE SQUARE button until it codes the selected function.

Note: The HANDSFREE SQUARE must be within 33 feet of the transmitter to function.

How to Use the Receiver Collar

How do I fit the e-collar?

• Making sure the collar fits correctly will ensure more consistent correction. To fit the e-collar properly:

1. 1. Put the receiver on your dog’s neck below the ears, on the side of the windpipe.

   2. Make sure the contact points are touching the skin.

   3. Check the fit. You should be able to put a couple of fingers between the strap and your dog’s skin.

If the collar is too loose, it won’t administer correction reliably. Meanwhile, a too-tight collar is an irritation risk. So, make sure your dog is comfortable. Rotate the collar every 2 hours and never leave it for more than 8 hours daily.

How do I adjust the stimulation level of my Dogtra 1900X collar?

• Adjust the stimulation level (0-100) using the Rheostat Dial on top of the transmitter. Always start at the lowest level and work your way up. The appropriate level can be found when the dog responds to the stimulation with a mild reaction.

Why can’t I get the full range on my e-collar?

• The actual range may vary depending on how you carry the transmitter and training conditions. To get the maximum range, hold the transmitter with the antenna facing away from you. Keep your unit properly charged for maximum signal strength.

How do I know if my Dogtra 1900X e-collar is ready for use?

• When the LED indicator blinks every 4 seconds, the receiver is on and ready for use. The LED indicator flashes on the transmitter and the receiver when stimulation is delivered.

Troubleshooting the Dogtra 1900X Remote Training Collar

1. Why is my dog not reacting to the e-collar?

Your dog not reacting to the e-collar stimulation could be a simple matter of the receiver and transmitter not being turned on. It could also be due to the prongs not touching your dog’s skin. Check the fit. If the fit is okay, check the prong length. If the contact points are too short, you may want to get longer ones to get the collar to work correctly. If you are already using the longest length, you may want to consider shaving your dog’s hair to get better contact.

Check our blog for more reasons why your dog is not reacting to the e-collar.

2. The test light turns on, but I do not feel anything.

You may simply have a high tolerance. Try turning the level up. This could also be due to the battery being low. Check your LCD for battery life.

3. The range is less when the dog is farther away.

Check if the antenna is not damaged. If it’s not an antenna issue, it could be due to terrain. Heavy brush or tree cover can affect the range of the device. Similarly, any electrical conductors in the area will affect the range of the e-collar.

4. My Dogtra 1900X is not holding a charge.

Check if the batteries are charged properly. If the charging port is dirty, try cleaning the dirt with a cotton swab and some rubbing alcohol. If the charging pin is damaged, you will need to contact Dogtra for repair.

For more information on how to use your Dogtra 1900X system, please check the user manual.
