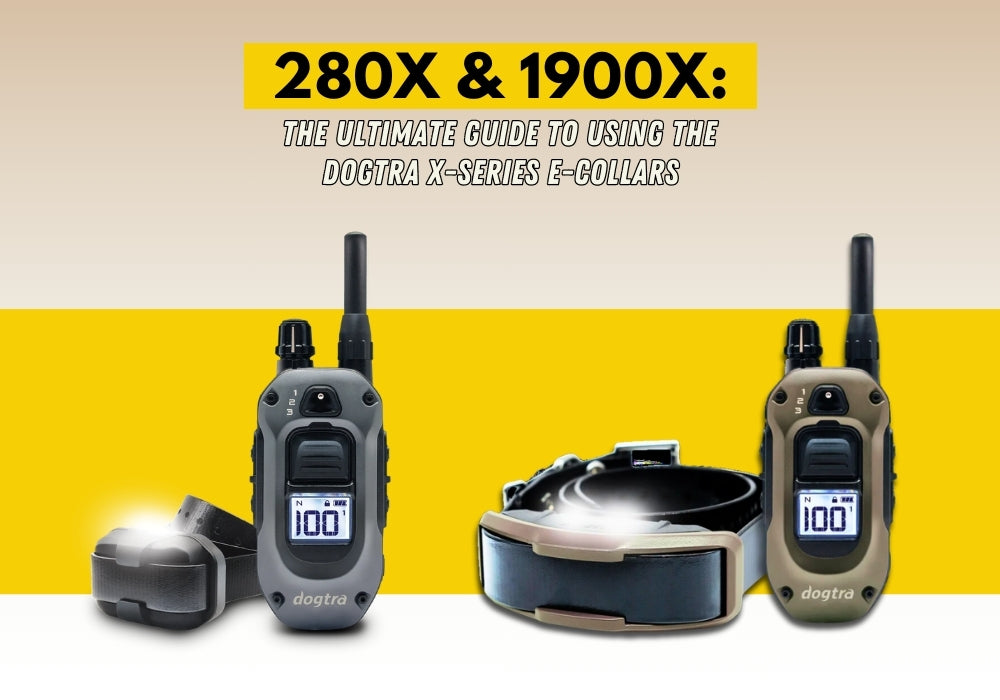

The Ultimate Guide to Using the Dogtra 280X and 1900X E-Collars

Dogtra is renowned for its precision, reliability, and innovation in the world of dog training. Their X-Series e-collars – featuring the 280X and 1900X – are a testament to this reputation. These next-generation remote training collars offer a range of innovative features to suit various dogs and training scenarios.

If you’ve recently purchased a Dogtra 280X or 1900X e-collar, this guide will help you maximize the benefits of your training tool.

What is the Dogtra X-Series Line?

The Dogtra X-Series combines cutting-edge technology and user-friendly features to address a wide range of training needs. These e-collars are designed to assist in obedience training, behavior correction, and even advanced fieldwork.

X-Series Features

The 280X and 1900X remote training e-collars share the following features:

• Central Button with Nick/Constant Stimulation: Programmable large button for faster response.
• Audible Tone and XPP (Extreme Performance Pager) Vibration: Provides multiple ways to communicate with your dog.
• Boost Function: Increases stimulation intensity for immediate response.
• Safety Level Lock: Prevents unintentional level changes.
• Three-Dog Expandable: Both collars support up to three dogs with additional receivers.
• Rheostat Dial with 100 Stim Levels: Fine-tuned control for any dog’s sensitivity level.
• 1000 Lux LED Light: Allows easy tracking of your dog in low-light conditions.
• Removable Male Contacts: Easy transition to a non-stimulation e-collar for flexible training.
• USB-C Charging: Faster and more efficient charging.
• IPX9K Waterproof Certification: Tested for durability under extreme conditions.

Key Differences Between 280X and 1900X

The 280X and 1900X are also available in 2-dog system variants (282X and 1902X) for multi-dog households.

What’s Inside the Box?

• Remote Transmitter
• E-Collar Receiver
• E-Collar Strap
• 5V 2.5A Charger
• USB-C Charging Cable
• Test Light
• Belt Clip
• Lanyard
• Owner’s Manual

Dogtra 280X and 1900X Remote Transmitter:

At first glance, the Dogtra 280X (X1) and 1900X (X2) remote transmitters look nearly identical. The primary visual difference lies in the color: the 280X features a gray faceplate, while the 1900X has a sleek brown finish. Beyond aesthetics, these transmitters are engineered for rugged use, featuring a double-layered casing for enhanced durability and drop resistance. Designed with usability in mind, they include a prominently placed programmable button, ensuring quick access and faster response during training sessions.

Dogtra 280X and 1900X Receiver Collar:

The 280X and 1900X receiver collars are built on the solid foundation of their predecessors, the 280C and 1900S, respectively. However, they introduce significant upgrades to enhance functionality and durability. Both models now include a beacon and locate light, making it easy to spot your dog in low-light conditions. In addition, they come with removable contact points for non-stimulation training. The 1900X goes a step further with a metal e-collar case, providing extra protection and durability for a more robust training device.

Dogtra X-Series Remote Training Collars – The Ultimate Dog Training Solution

Dogtra X-Series e-collars are here to revolutionize your training experience. With 100 stimulation levels and four training modes (nick, constant, XPP vibration, and tone), you can tailor your approach to your dog's unique personality. You can also set the main command button for either nick or contact stimulation for a faster response.

Built for the Outdoors, Designed for Control

The Dogtra 280X and 1900X are built for durability and performance. Their rugged double-cased design can withstand the elements and even accidental drops. And with the ability to train up to three dogs at once, you can keep your whole pack in line.

Safety First, Visibility Second

Dogtra prioritizes your pet's safety. The safety level lock prevents accidental adjustments, ensuring you're always in control. Plus, the built-in LED lights keep your dogs visible, no matter the time of day.

Upgrade Your Training Game

Don't let unruly behavior derail your outdoor adventures. With Dogtra X-Series e-collars, you can enjoy peaceful walks, reliable recalls, and a well-behaved companion.

Frequently Asked Questions

What is an e collar?

• An e collar is a dog training tool. It is also known as a remote trainer, remote training collar, or shock collar for dogs. An e-collar allows you to communicate remotely with your dog. Used correctly, it can help reinforce commands and correct undesirable behaviors in your pet. It enables you to train your dog with more precise timing and consistency. This makes an e-collar a very effective training tool.

Will an e collar hurt my dog?

• A remote trainer works by sending a signal from the transmitter to the collar on the dog’s neck. The signal then triggers the stimulation, which can be in the form of static shock. The stimulation is meant to distract the dog from doing something they’re not supposed to or mark the desired behavior. The stimulation may be unpleasant but generally harmless.

For people who prefer not to use static stimulation, the Dogtra X-Series comes with a Pager vibration and audible tone.

Are e-collars effective?

• E-collars can be invaluable training tools, but only when used correctly. If you are unsure about using one or do not know how to start, please consult a professional trainer.

When can I use an e-collar for dogs?

• PetsTEK does not recommend using an e-collar for dogs younger than 6 months old. Supplement training with a remote trainer only when your dog has already learned the basic commands.

Are Dogtra collars worth it?

• Yes. Dogtra e-collars are safe and effective training devices trusted by professional dog trainers and pet owners alike.

How do Dogtra X-Series e-collars work?

• Dogtra X-Series e-collars work by sending signals from a handheld transmitter to a receiver collar worn by your dog. The receiver collar has two contact points that deliver a mild static stimulation, vibration, or tone. You can adjust the intensity of the stimulation to suit your dog's needs. Moreover, the boost function provides extra power for demanding situations.

What’s the difference between the 280X and 1900X?

• The 280X is ideal for sensitive or smaller dogs, while the 1900X suits larger and more stubborn breeds.

Do Dogtra X-Series e-collars have any safety features?

• Yes, both the Dogtra 280X and 1900X have safety features to prevent accidental overstimulation. These include an automatic shut-off after 12 seconds of continuous stimulation and a safety level lock to avoid unintentional adjustments.

Operating the Dogtra X-Series Remote Training Collars: 280X and 1900X

Throughout this guide, "Dogtra X-Series" refers to both the 280X and 1900X e-collar models.

Setting Up Your Dogtra X-Series System

How to charge your Dogtra e-collar system?

• To charge your Dogtra X-Series e-collars, follow these simple steps:

1. Connect the Cable: Plug the USB-C cable into both the transmitter and receiver.
2. Plug into Outlet: Plug the other end of the USB-C cable into a wall outlet.
3. Monitor Charging: Watch the indicator lights. They should turn red during charging and green when fully charged. The charging process typically takes around 2 hours.

How do I turn the Dogtra X-Series remote transmitter on and off?

• To turn the transmitter on, press and hold the power button on the bottom right of the transmitter until the screen lights up. To turn the transmitter off, press the same button for 2 seconds.

How do I turn the Dogtra X-Series e-collar receiver on and off?

• To turn the e-collar receiver on or off, press and hold the power button, located between the contact points, for 2 seconds. A green light means it's on; a red light means it's off.

How to Use the Transmitter

How to program the Main Command button?

• To program the main button for Nick or Constant stimulation, here are the steps:

1. Set the stimulation level to “0”.
2. Simultaneously press and hold both the main front button and the side power button for 5 seconds.
3. The selected mode (Nick or Constant) will be displayed on the screen.

Note: The factory default setting is Nick mode.

How to set the Boosted Constant?

• To use the Boosted Constant feature, follow these steps:

1. Turn the dial to set the stimulation level to zero.
2. Press and hold the Boosted Constant button for 5 seconds until the LED light blinks.
3. Turn the dial to choose the desired boost level. This will be added to the base level when you use the Boosted Constant button.
4. Tap the Boosted Constant button to save the setting.

Note: To use Constant stimulation without Boost, set the Boost level to 0. Your Boost setting will be saved even if you turn off the device. To change the Boost setting, follow the steps above.

What do Nick and Constant Stimulation mean?

• Nick emits a single pulse of static stimulation when the Nick button is pressed. On the other hand, Constant gives continuous, static stimulation as long as the button is pressed, for up to 12 seconds.

What is the Dogtra X-Series XPP Vibration?

• The XPP (Extreme Performance Pager) vibration provides a 12-second vibration when the button is held.

How to use the Dogtra X-Series Audible Tone?

• To use the audible tone on your Dogtra X-Series, press and hold the tone button for up to 12 seconds.

How to use the LED Locate Light?

• The 1000-Lux LED Locate Light on the Dogtra receiver helps you easily spot your dog in low-light conditions. Here's how to use it:

1. Enable Continuous Blinking: Tap the Locate Light button once on the transmitter. The light will blink every 4 seconds.
2. Disable Continuous Blinking: Tap the Locate Light button again to turn off the blinking.
3. Manual Activation: Press and hold the Locate Light button for steady blinking. The light will stay on for up to 12 seconds.

How to use the Safety Level Lock?

• To prevent accidental changes to the stimulation level, you can lock the controls. Press and hold the top of the dial for 2 seconds to activate the lock. A lock icon will appear on the screen. To unlock, simply press and hold the top of the dial again for 2 seconds.

How to add a collar receiver to your X-Series system?

• To add another receiver to your system, follow these steps:

1. Power On and Select Dog: Turn on the transmitter and ensure the stimulation level is set to 0. Select the desired dog number (1, 2, or 3).
2. Prepare the Receiver: Turn off the new receiver and press and hold its power button for 5 seconds until the LED blinks.
3. Pair the Devices: On the transmitter, simultaneously press the front button and the side Boost button until the screen displays "CD****".
4. Test the Pairing: Press the Pager vibration button. If the new receiver vibrates, the pairing is successful. If not, repeat the pairing process.

How to install the X-Shield on your transmitter?

• Here's how to install your X-Shield:

1. Loosen the Screws: Use the included tool to loosen the four screws on the front case of your transmitter.
2. Remove the Case: Carefully remove the front case.
3. Attach the X-Shield: Place the X-Shield on top of the transmitter, aligning the screw holes.
4. Secure the Shield: Tighten the four screws to secure the X-Shield in place.

Note: Additional X-Shields are sold separately.

How to pair the HANDSFREE SQUARE with your Dogtra X-Series system?

• The HANDSFREE SQUARE allows you to control specific functions of your Dogtra X-Series system remotely, making training hands-free. Follow these simple steps to pair the HANDSFREE SQUARE with your transmitter:

A. Pairing for Nick or Constant Stimulation

1. Switch on the transmitter and set the stimulation level to “0.”
2. Press and hold the POWER and CENTER (N/C) buttons simultaneously for 5 seconds.
3. The screen will display the selected function.
4. After selecting the function, power off the transmitter.
5. Press and hold the POWER and CENTER (N/C) buttons again until the LED blinks rapidly.
6. Hold the HANDSFREE SQUARE button until it codes the selected function.

B. Pairing for Other Functions (e.g., Boost, Pager, Tone, Light)

1. Start with the Transmitter Off: Ensure the transmitter is powered down.
2. Activate Pairing Mode: Press and hold the ON/OFF button along with your desired function button (e.g., Boosted Constant, Pager, Tone, or Light) until the LED blinks rapidly.
3. Pair the HANDSFREE SQUARE: Press and hold the HANDSFREE SQUARE button until it codes the selected function.

Note: The HANDSFREE SQUARE must be within 33 feet of the transmitter to function.

How to Use the Receiver Collar

How do I fit the e-collar?

• Making sure the collar fits correctly will ensure more consistent correction. To fit the e-collar properly:

1. Put the receiver on your dog’s neck below the ears, on the side of the windpipe.
2. Make sure the contact points are touching the skin.
3. Check the fit. You should be able to put a couple of fingers between the strap and your dog’s skin.

If the collar is too loose, it won’t administer correction reliably. Meanwhile, a too-tight collar is an irritation risk. So, make sure your dog is comfortable. Rotate the collar every 2 hours and never leave it for more than 8 hours daily.

How do I adjust the stimulation level of my Dogtra X-Series collar?

• Adjust the stimulation level (0-100) using the Rheostat Dial on top of the transmitter. Always start at the lowest level and work your way up. The appropriate level can be found when the dog responds to the stimulation with a mild reaction.

Why can’t I get the full range on my e-collar?

• The actual range may vary depending on how you carry the transmitter and training conditions. To get the maximum range, hold the transmitter with the antenna facing away from you. Keep your unit properly charged for maximum signal strength.

How do I know if my Dogtra X-Series e-collar is ready for use?

• When the LED indicator blinks every 4 seconds, the receiver is on and ready for use. The LED indicator flashes on the transmitter and the receiver when stimulation is delivered.

Troubleshooting the Dogtra X-Series Remote Training Collar

1. Why is my dog not reacting to the e-collar?

Your dog not reacting to the e-collar stimulation could be a simple matter of the receiver and transmitter not being turned on. It could also be due to the prongs not touching your dog’s skin. Check the fit. If the fit is okay, check the prong length. If the contact points are too short, you may want to get longer ones to get the collar to work correctly. If you are already using the longest length, you may want to consider shaving your dog’s hair to get better contact.

Check our blog for more reasons why your dog is not reacting to the e-collar.

2. The test light turns on, but I do not feel anything.

You may simply have a high tolerance. Try turning the level up. This could also be due to the battery being low. Check your LCD for battery life.

3. The range is less when the dog is farther away.

Check if the antenna is not damaged. If it’s not an antenna issue, it could be due to terrain. Heavy brush or tree cover can affect the range of the device. Similarly, any electrical conductors in the area will affect the range of the e-collar.

4. My Dogtra X-Series is not holding a charge.

Check if the batteries are charged properly. If the charging port is dirty, try cleaning the dirt with a cotton swab and some rubbing alcohol. If the charging pin is damaged, you will need to contact Dogtra for repair.

For more information on how to use your Dogtra X-Series system, please check their user manuals:

• 280X Manual
• 1900X Manual

Looking for a different Dogtra e-collar? Find what you need with the help of our Dogtra E-Collar Buying Guide.
